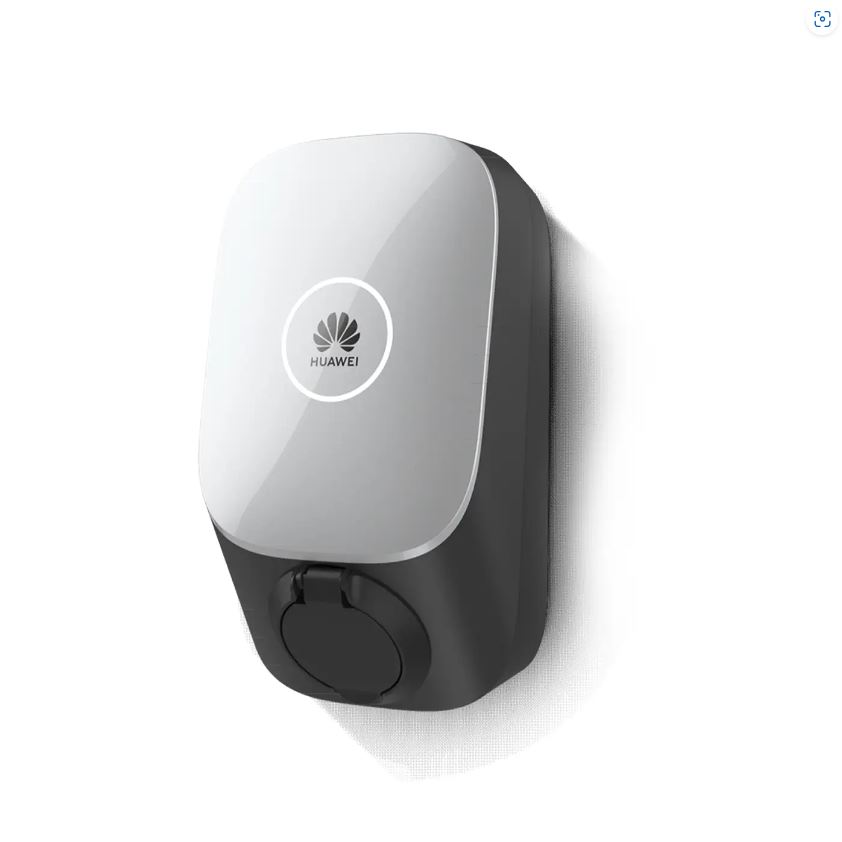

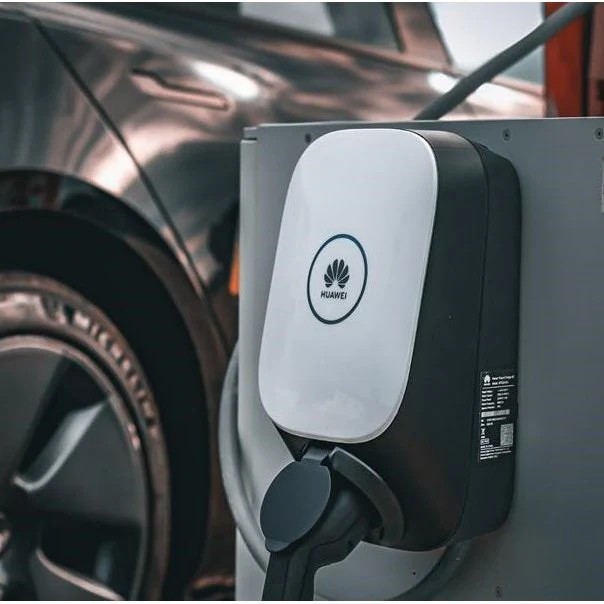

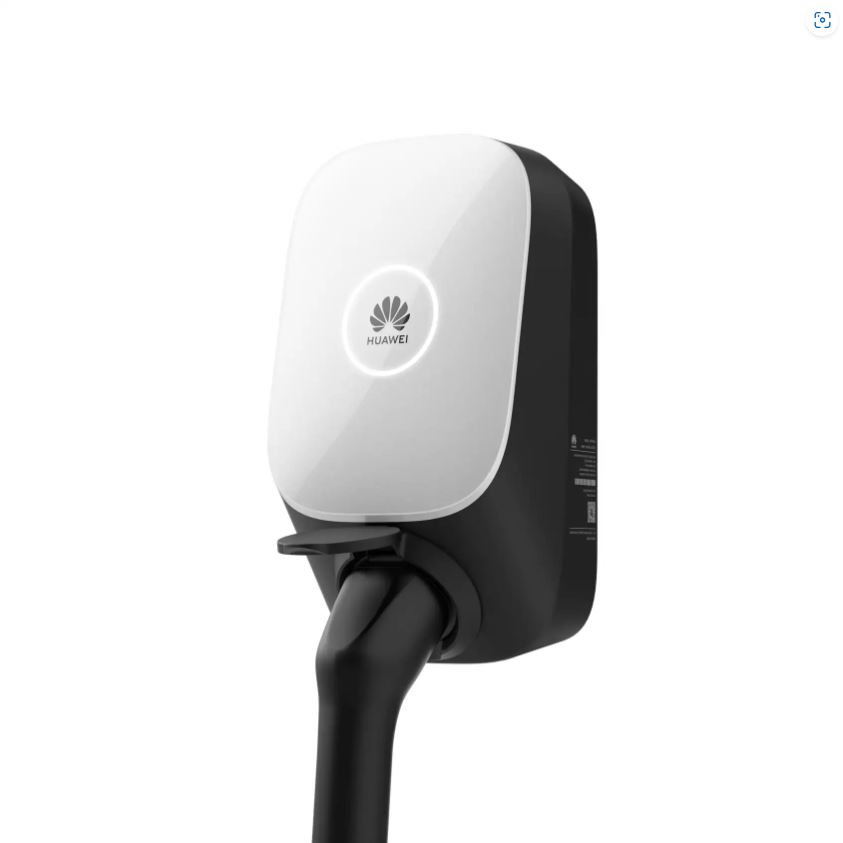

HUAWEI FUSIONCHARGE, 22kW, 32A, TYPE 2

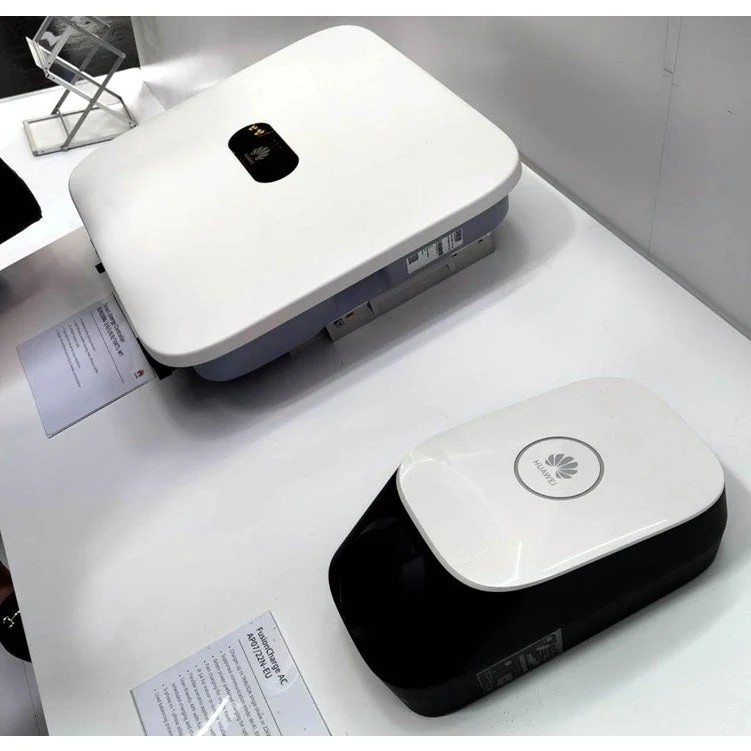

Discover the Huawei FusionCharge AC – an electric vehicle charging station designed to meet the needs of modern electric vehicles. With a powerful charging capacity of 22 kW and a maximum current of 32 A, this device ensures fast and efficient charging. It features advanced connectivity options, including Bluetooth 5.0, Ethernet, and 2.4 GHz Wi-Fi, allowing for easy integration into smart home ecosystems. The Huawei FusionCharge auto charging station is fully compatible with the SUN2000 series inverter, with everything integrated into a single app.

Modern connectivity
Equipped with Bluetooth 5.0, Ethernet, and 2.4 GHz Wi-Fi, this charging station ensures easy connectivity and integration into smart home networks, providing a convenient charging experience.

Comprehensive safety
The device offers comprehensive protection, including overheating, overvoltage, overload, over/under frequency, over/under voltage, residual current, surge, and low-temperature protection, ensuring safe and reliable charging for your electric vehicle.

Efficient energy management
With features such as load balancing, time-of-use scheduling, and green energy prioritization, the Huawei FusionCharge AC maximizes energy efficiency and user convenience, making it an environmentally friendly choice for electric vehicle owners.

Secure access control
RFID access control and automatic authentication ensure secure and convenient access to charging, guaranteeing that only authorized users can use the station.

Durable and user-friendly design
The IP54/IK10 rated enclosure provides resistance against environmental influences and mechanical damage, while the breathable indicator and wall-mount design make this station convenient to use and install.

Specifications:
Charging power: 22 kW adjustable from 1.4 kW to 22 kW.
Phases: 3
Connection: Type 2
Authorization: RFID, APP, Bluetooth
Communication module: WiFi, Ethernet
Mechanical protection: IP54, IK10 / indoor and outdoor installation
Fire safety rating: UL94
Surge Protection: Yes
Height: 335 mm
Width: 180 mm
Depth: 145 mm

Includes 2 RFID cards

Warranty 36 months

Please note that, according to regulations, a three-phase device must be installed by a certified specialist; otherwise, the warranty will not be valid.
